Factory Wholesale Ansu Wonderland Bayi Bycross New 11r22.5 Truck Tires Heavy Truck Commercial Offroad Wheels & Tires

Customization: Available
After-sales Service: Refund If Manufacture Problems
Warranty: 120000km

Product Description

Basic Specifications
Model NO.
11R22.5
Kind
Vacuum Tire
Diameter
21''- 24''
Tire Design
Radial Tyre
Certification
ECE, ISO9001, DOT
Tire Hierarchy
18PR / 16PR / 14PR
Cord Material
Steel Wire
Inner Tube
Tubeless
Material
Natural Rubber (Malaysia/Thailand)
Production Capacity
3 Million PCS Annually
Product Description
Truck Tire Factory Overview

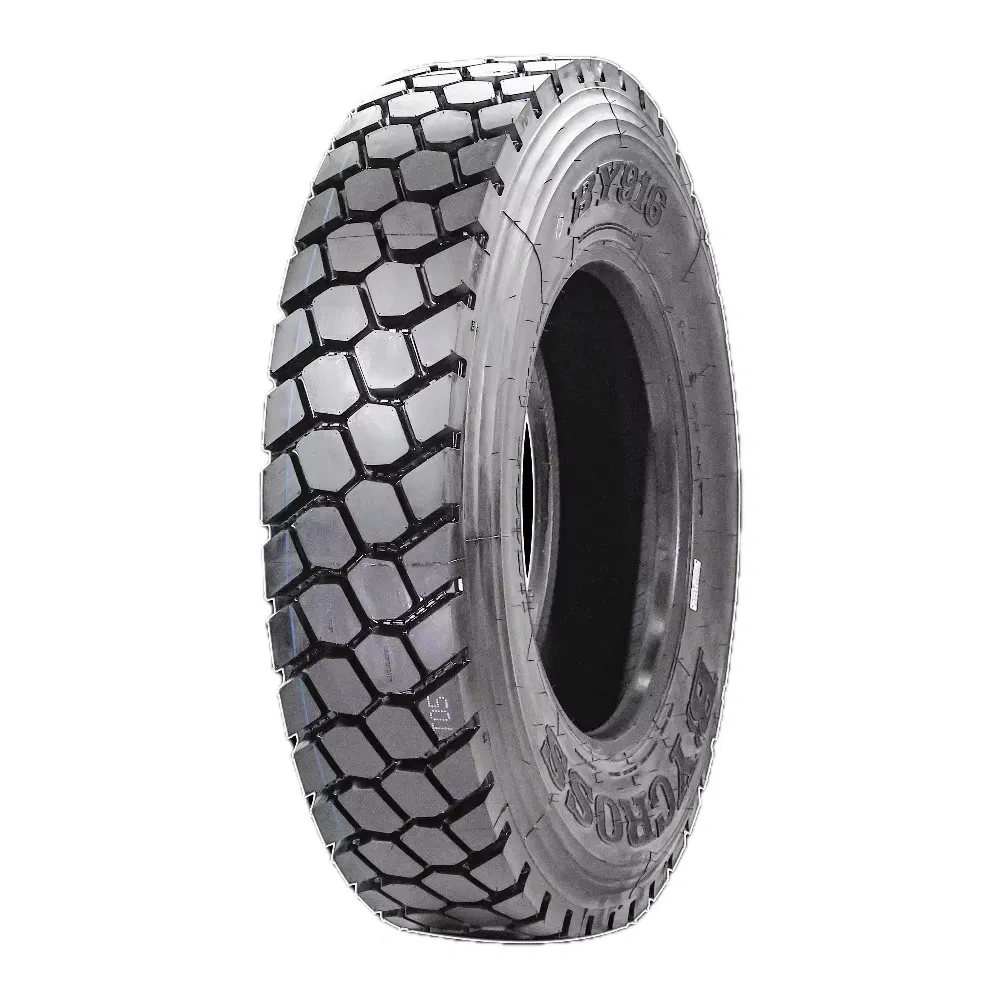

BY916 Pattern
Tire pattern square mixed pattern design provides excellent driving performance;
Add structural design and anti-tearing technology to provide excellent anti-collapse performance for tires;
The high-strength tire structure can improve the side explosion resistance and prolong the service life of the tire.
BY916 Detail 1

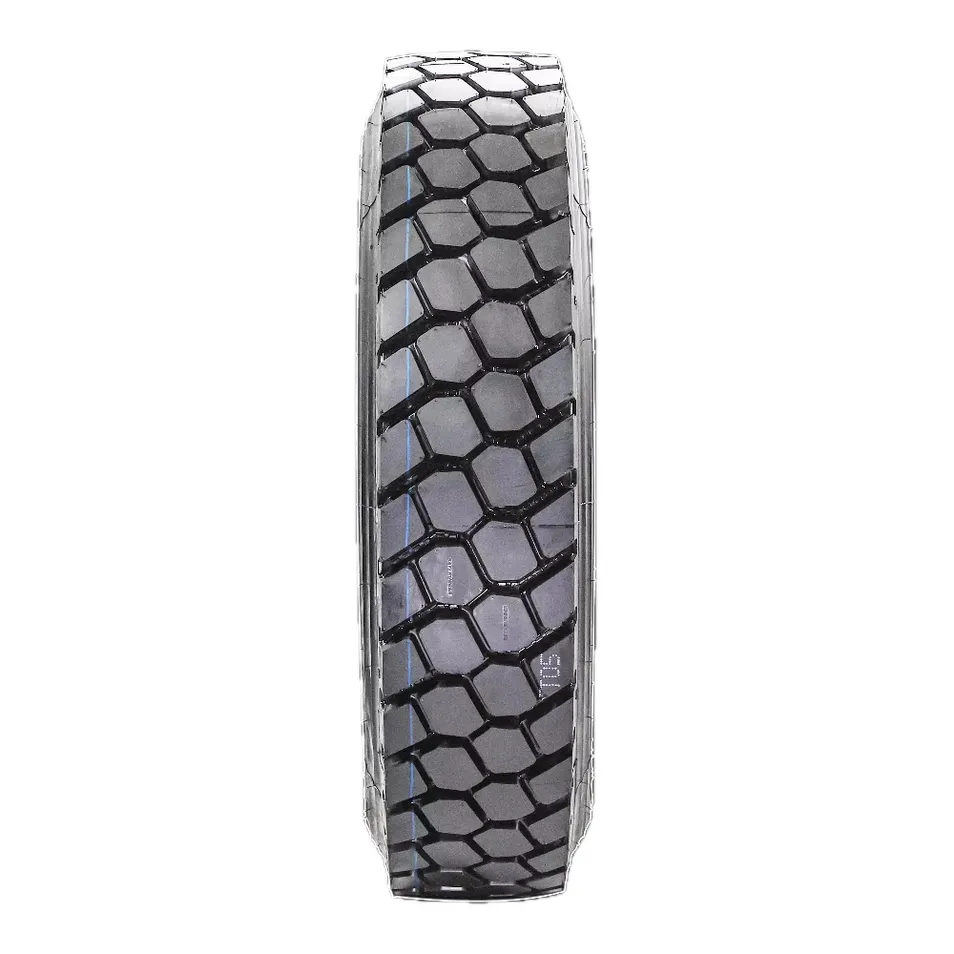

BY916 Detail 2

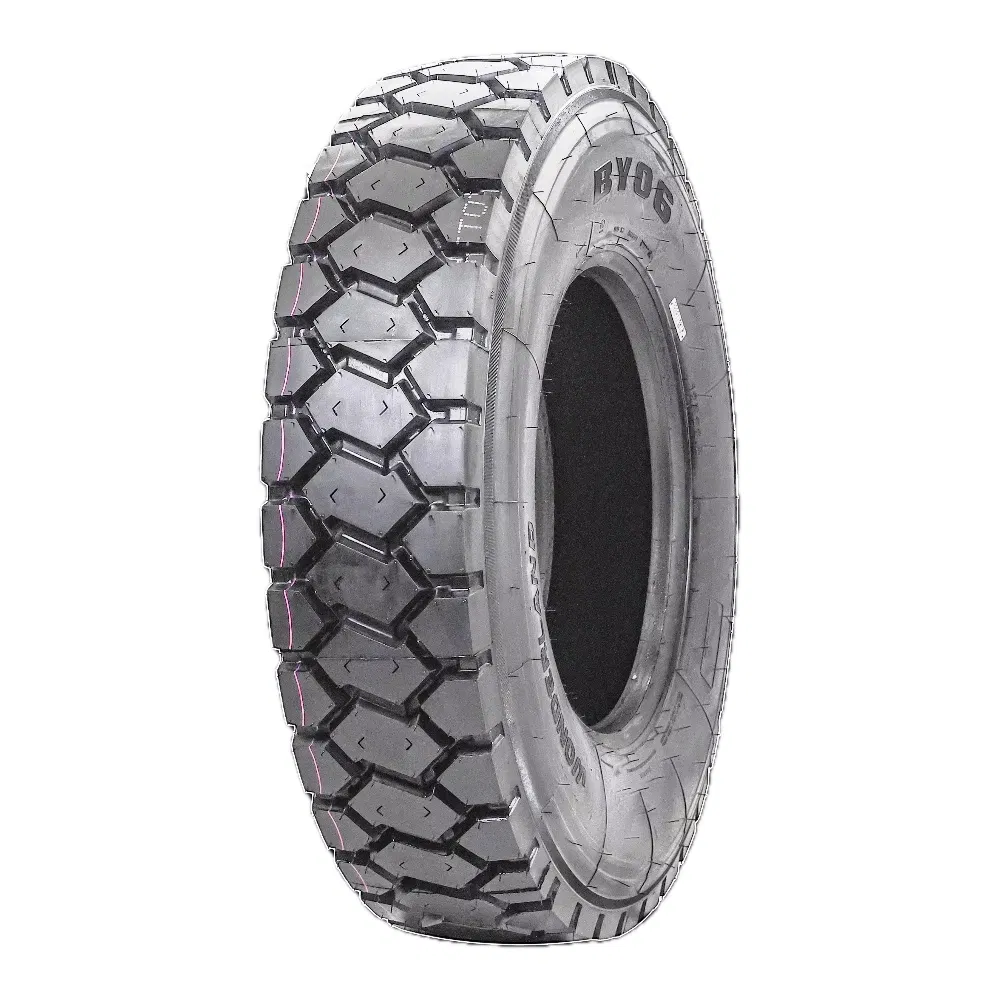

BY06 Pattern
Block pattern design for excellent driving and braking performance;
Reinforcing rib design with anti-tearing formula to provide excellent anti-cracking performance;
Optimization of crown design, with the strengthened shoulder rigid performance, guarantees the load-bearing performance simultaneously and reduces shoulder heat.
BY06 Detail 1

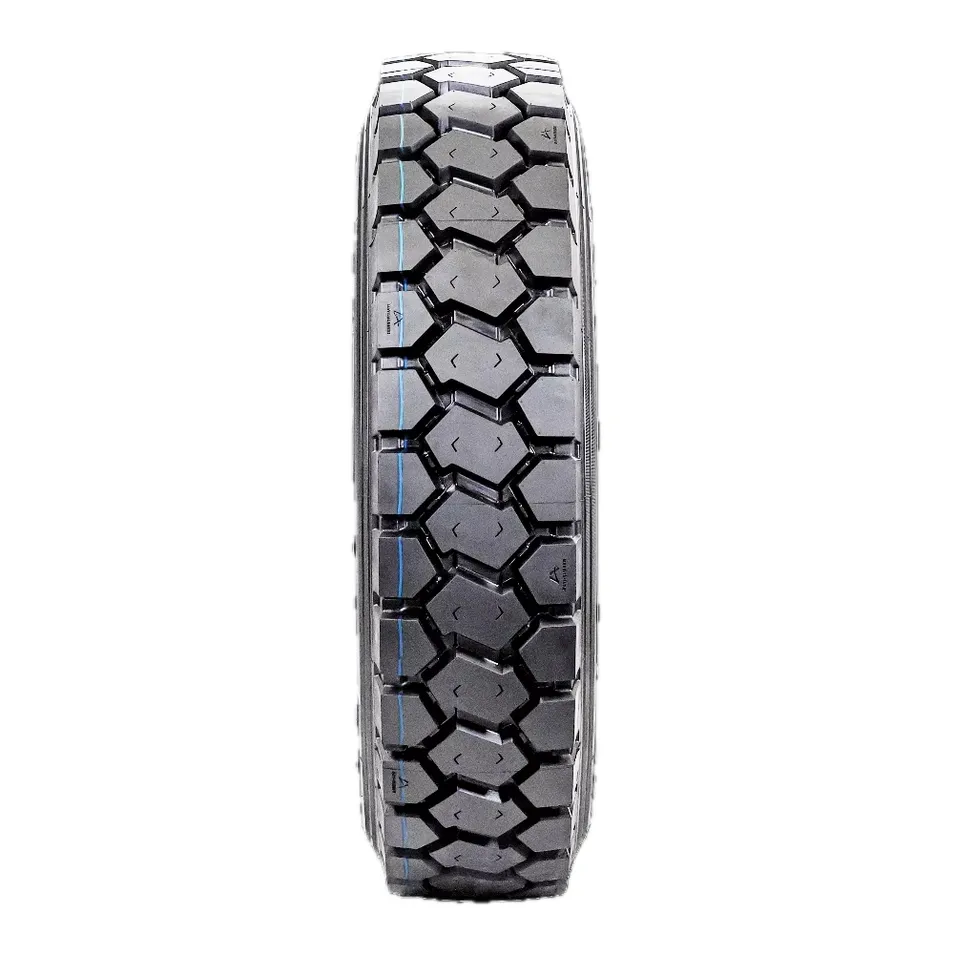

BY06 Detail 2
BY907 Pattern
Block mixed pattern design provides good driving and braking performance;
Stiffened design between pattern blocks reduces the probability of breaking off pieces;
Shoulder slot design reduces heat generation during driving and improves tire service life.

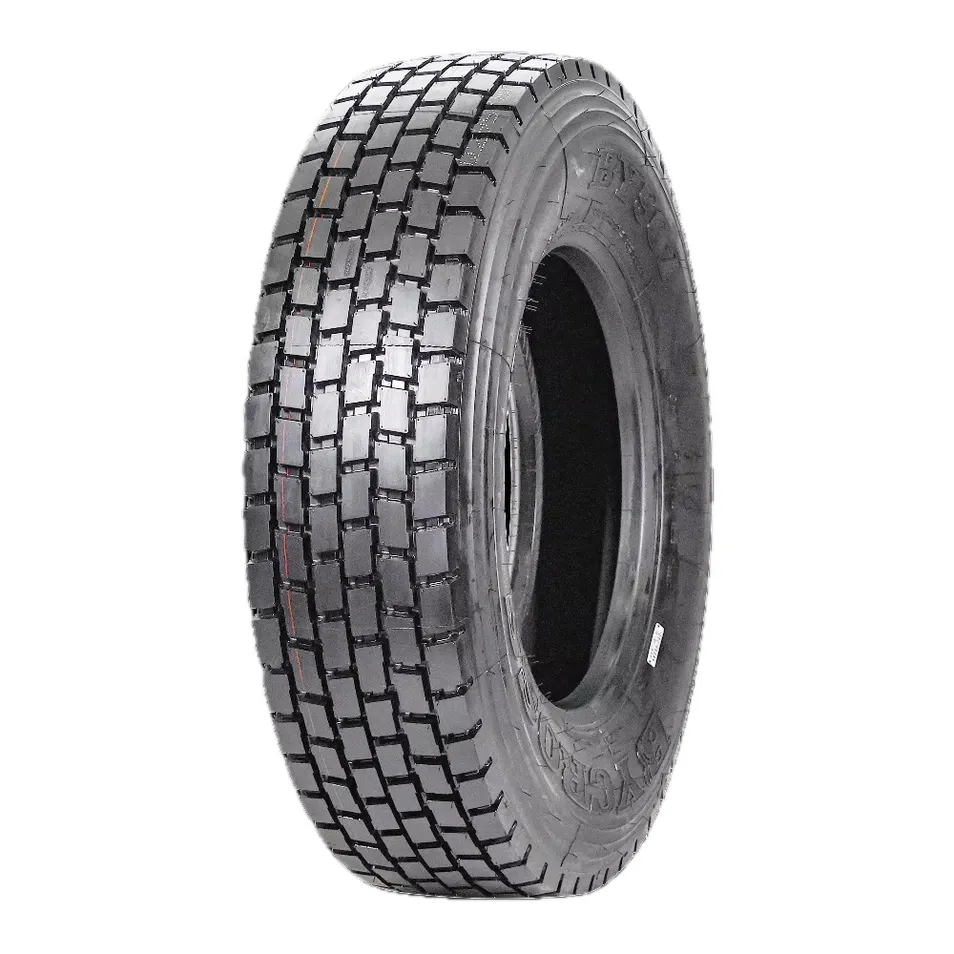

BY907 Detail 1

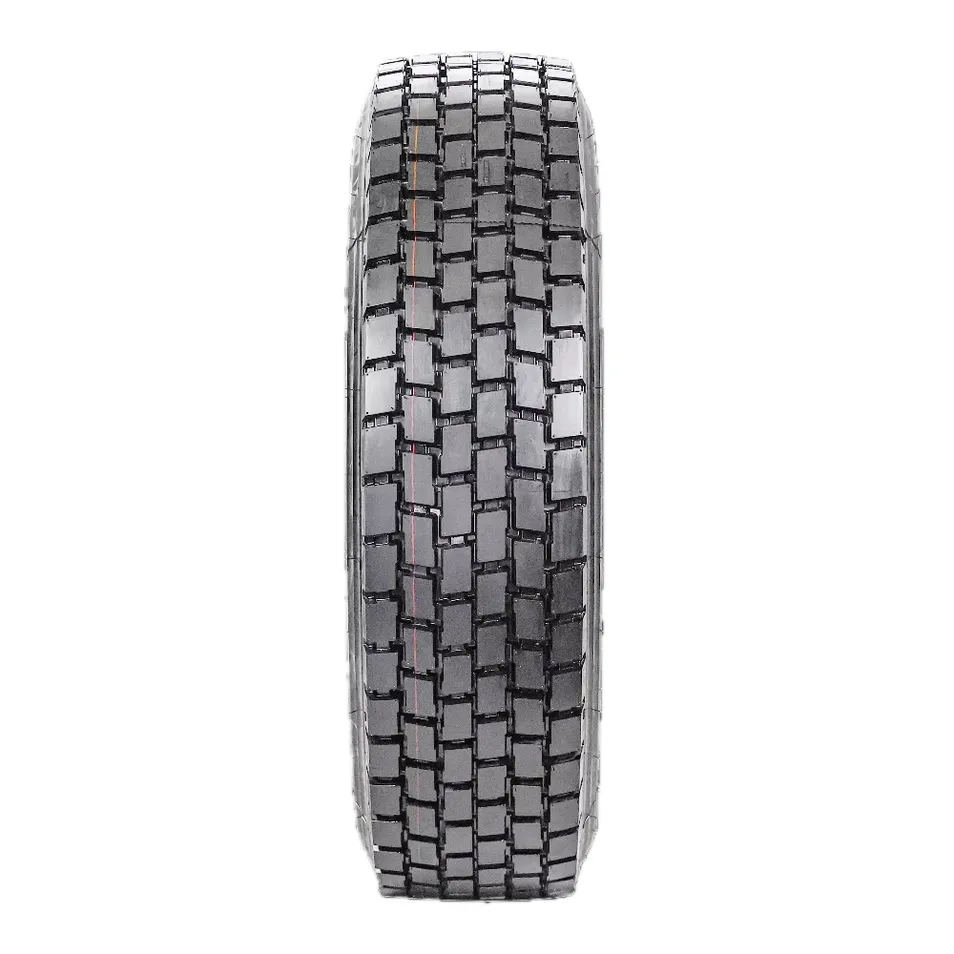

BY907 Detail 2
BS28 Pattern
High-intensity dense carcass, improving anti side explosion capacity and prolonging service life;
Three longitudinal line type main pattern groove design for excellent comprehensive performance, suitable for full wheel position.

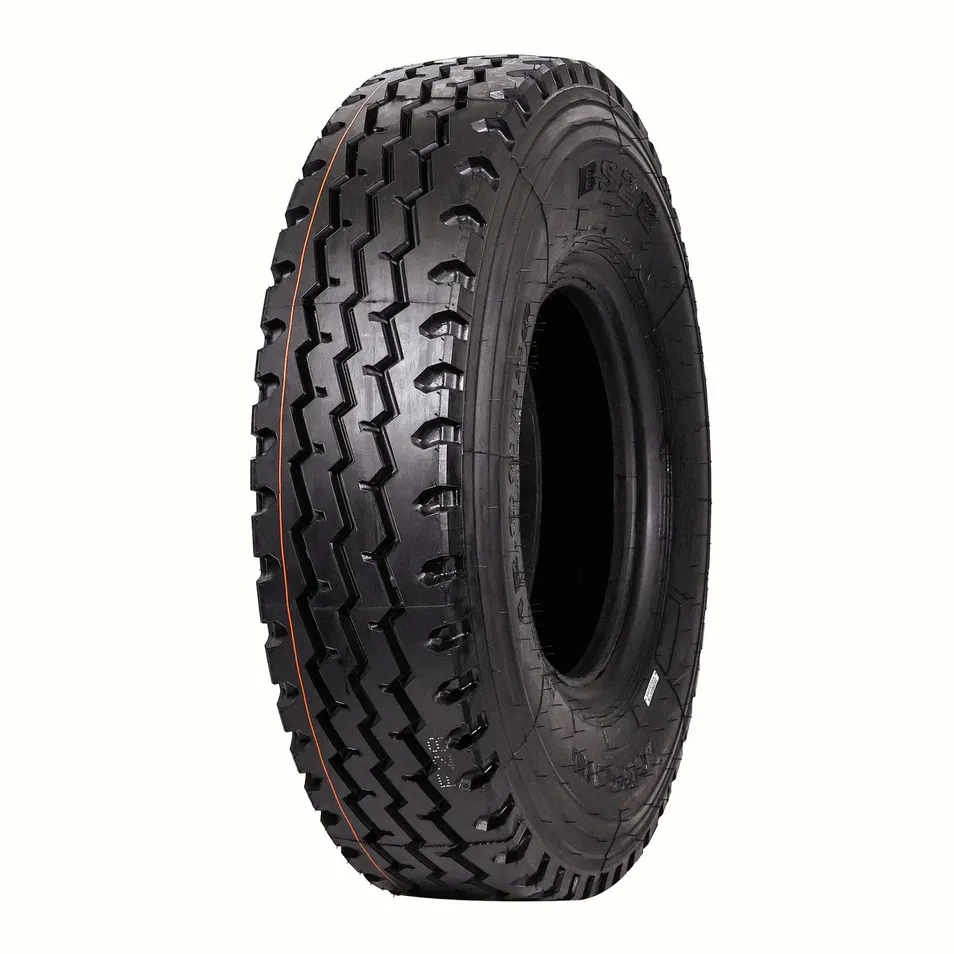

BS28 Detail 1
BS28 Detail 2
BYD88 & BYS98+ Features
BYD88: New technology reducing heat generation for longer lifespan; mixed pattern for stronger driving force; self-cleaning function.
BYS98+: Long-distance anti-wearing formula; low heat shoulder for high-speed stability; four longitudinal straight grooves prevent side-slip.

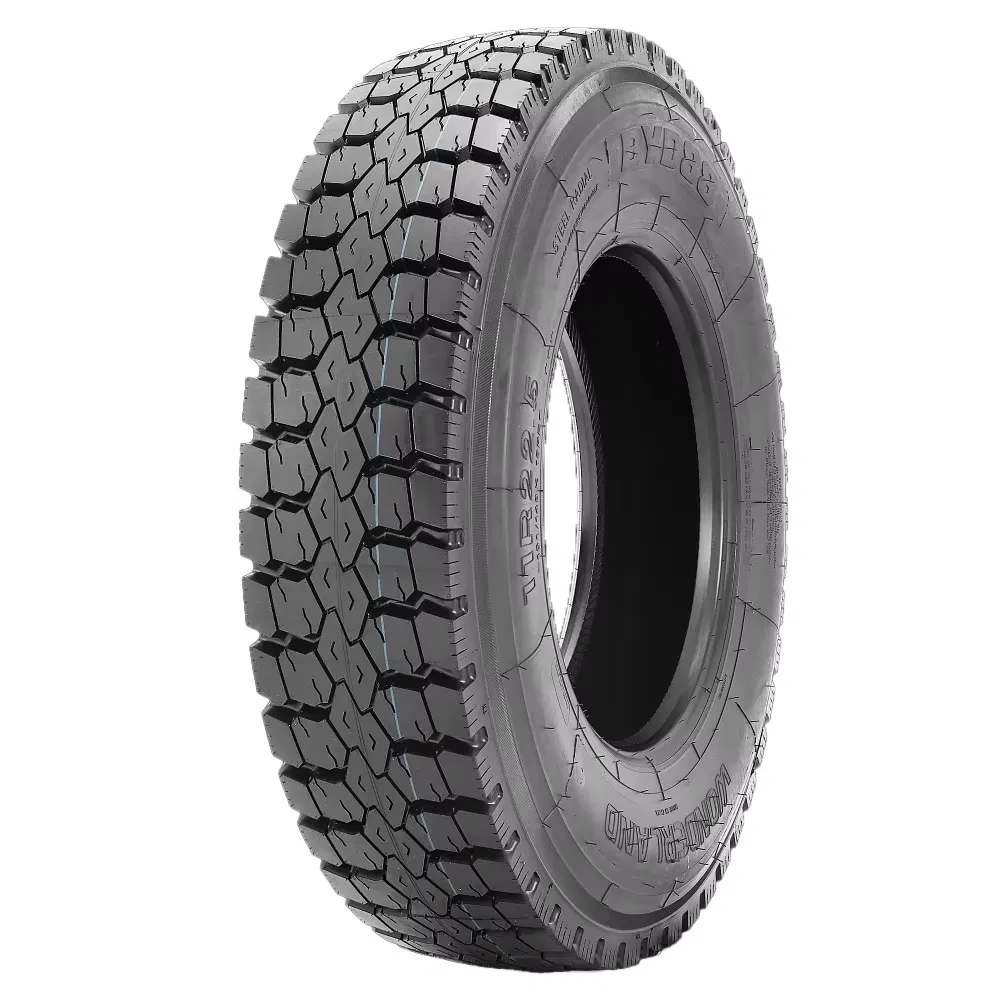

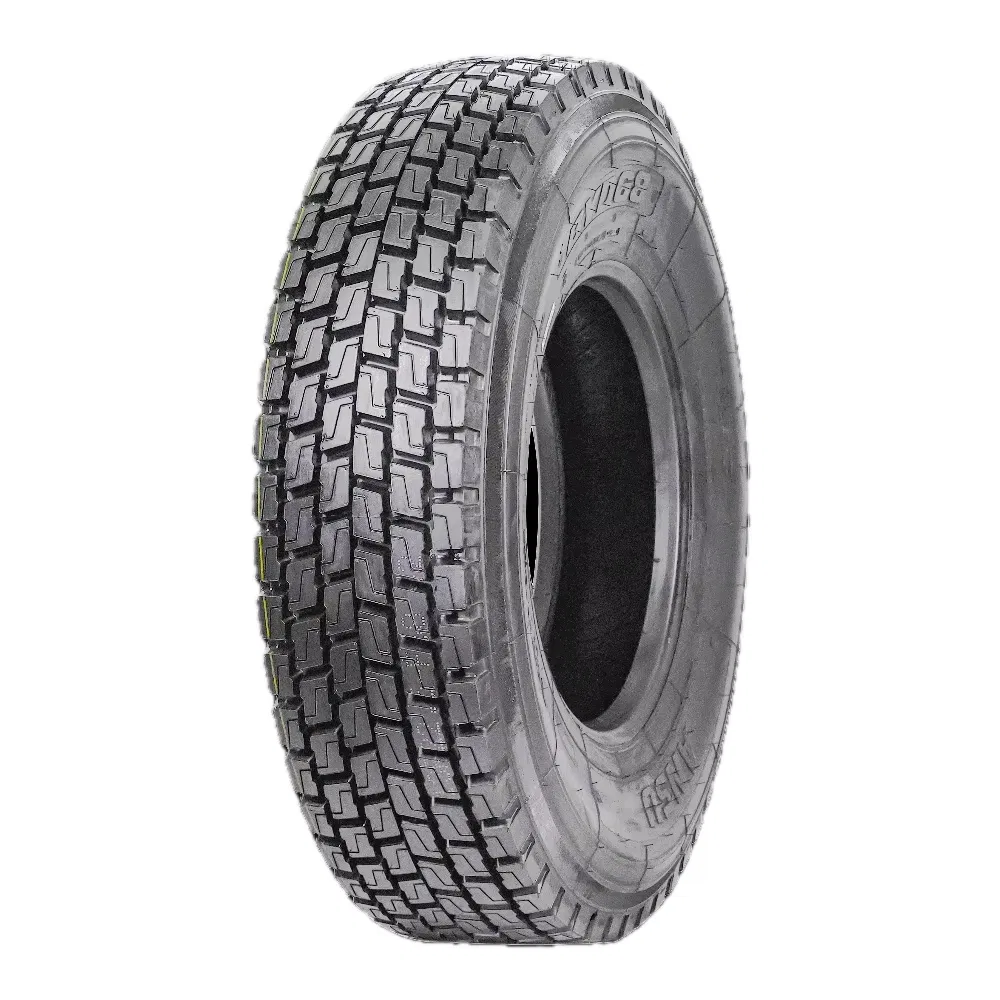

BYD88

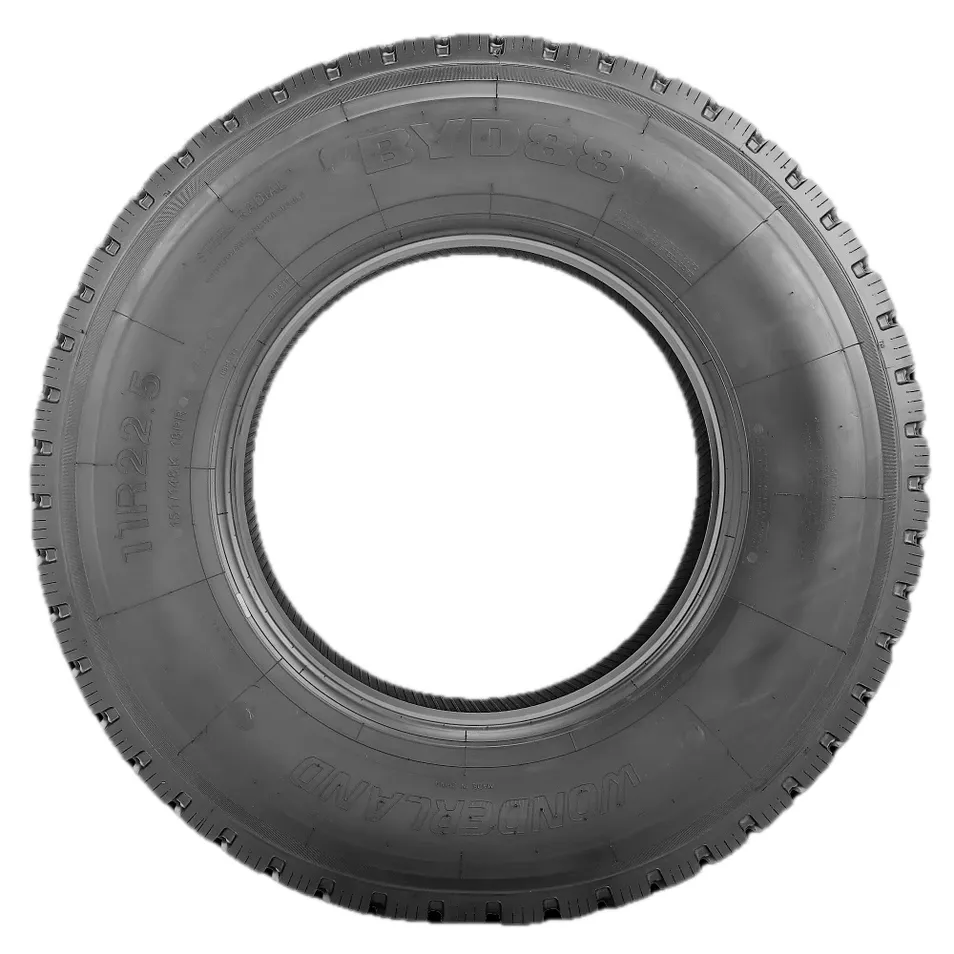

BYD88 Profile

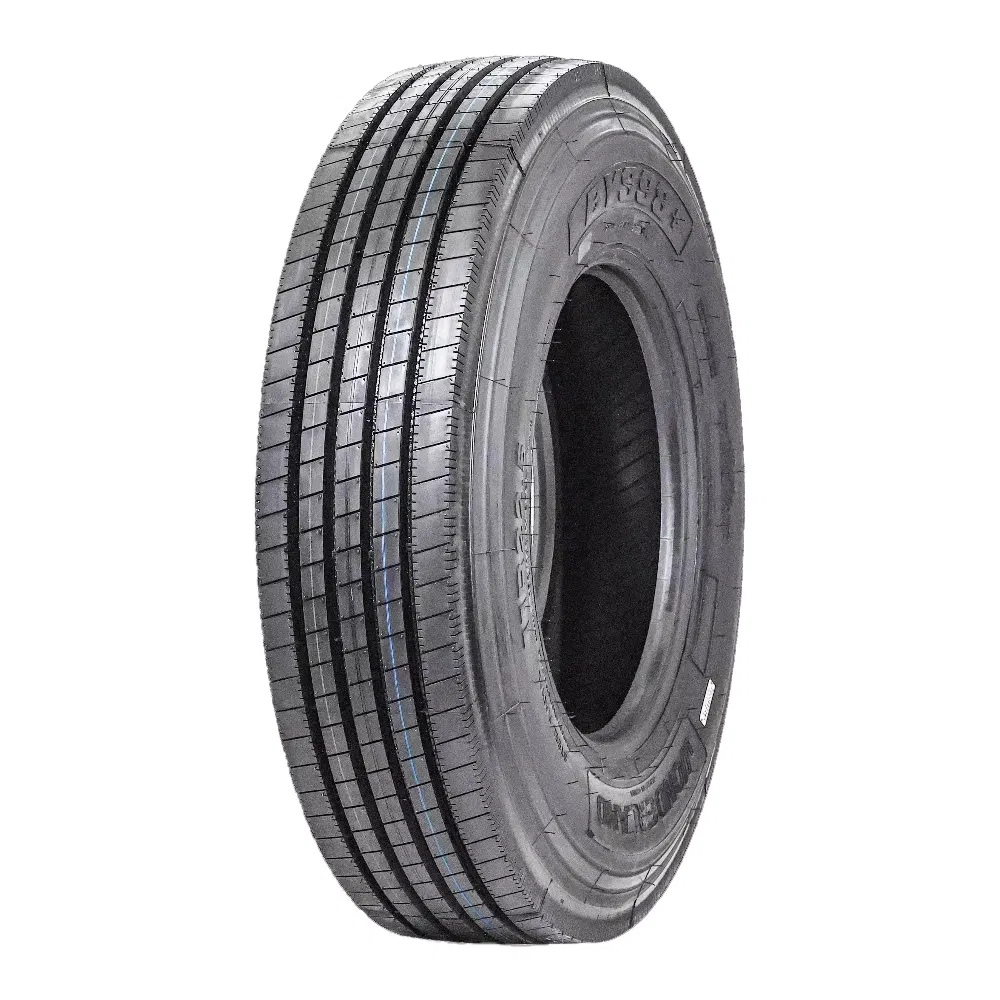

BYS98+
Technical Specification
SIZE PATTERN LOAD INDEX RIM SPEED DIA(mm) WIDTH(mm) DEPTH(mm) MAX LOAD(Kg)
11R22.5-16BY916146/1438.25L1060282233000/2725
11R22.5-18BY916151/1488.25K1060282233450/3150
11R22.5-18BY06151/1489G106429220.53450/3150
11R22.5-16BY907146/1438.25M1046.628216.33000/2725
11R22.5-18BYD88151/1488.25K1057292183450/3150
11R22.5-16BY605146/1438.25M103528210.53000/2725
11R22.5-18BYS98151/1488.25K1057292173400/3150
Certifications & Logistics

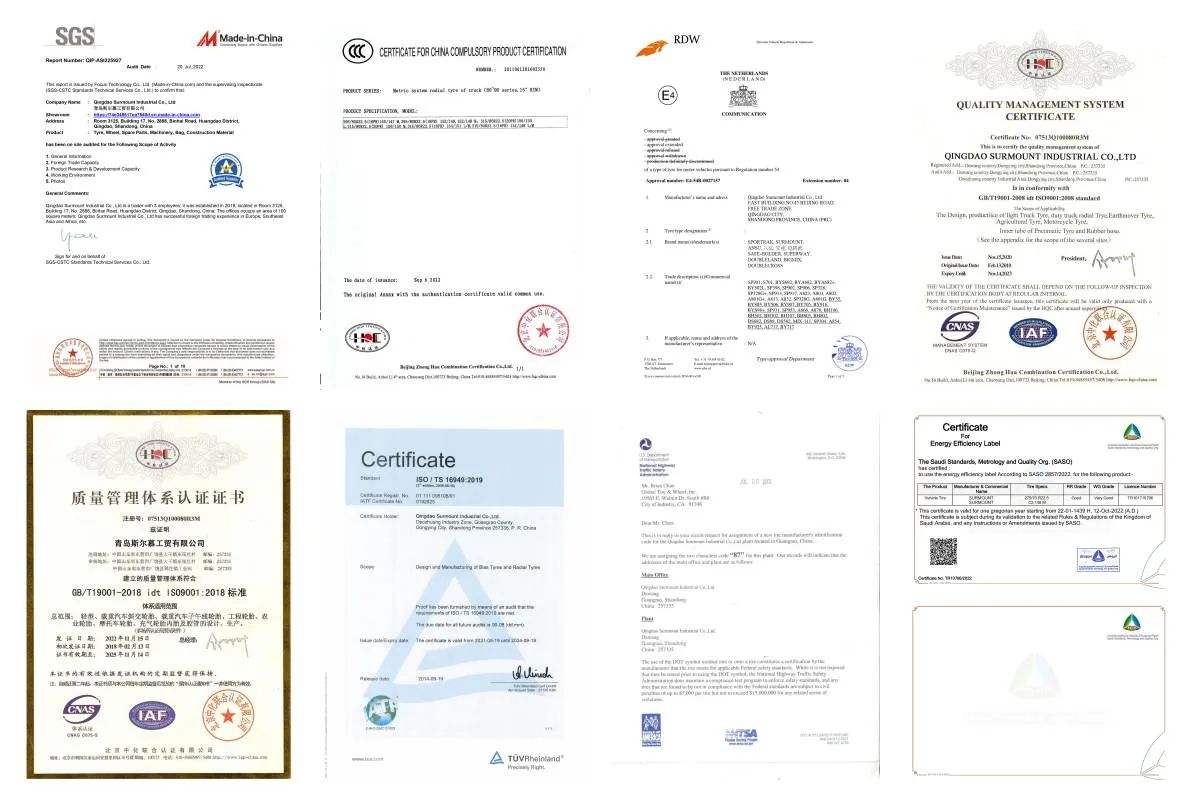

Certification Documents

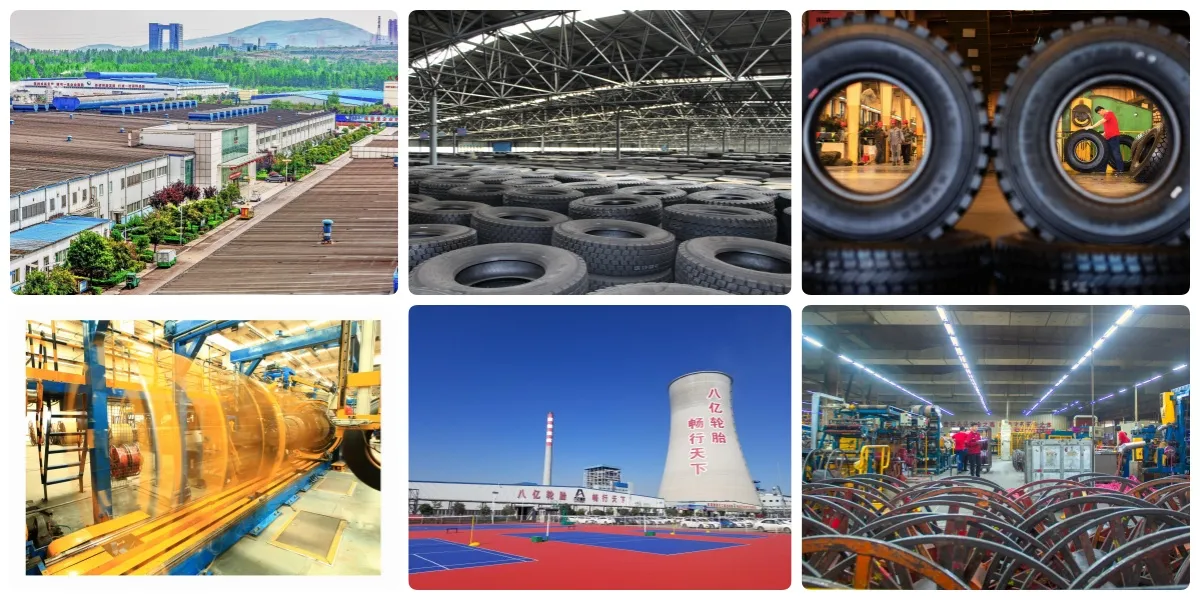

Production Line

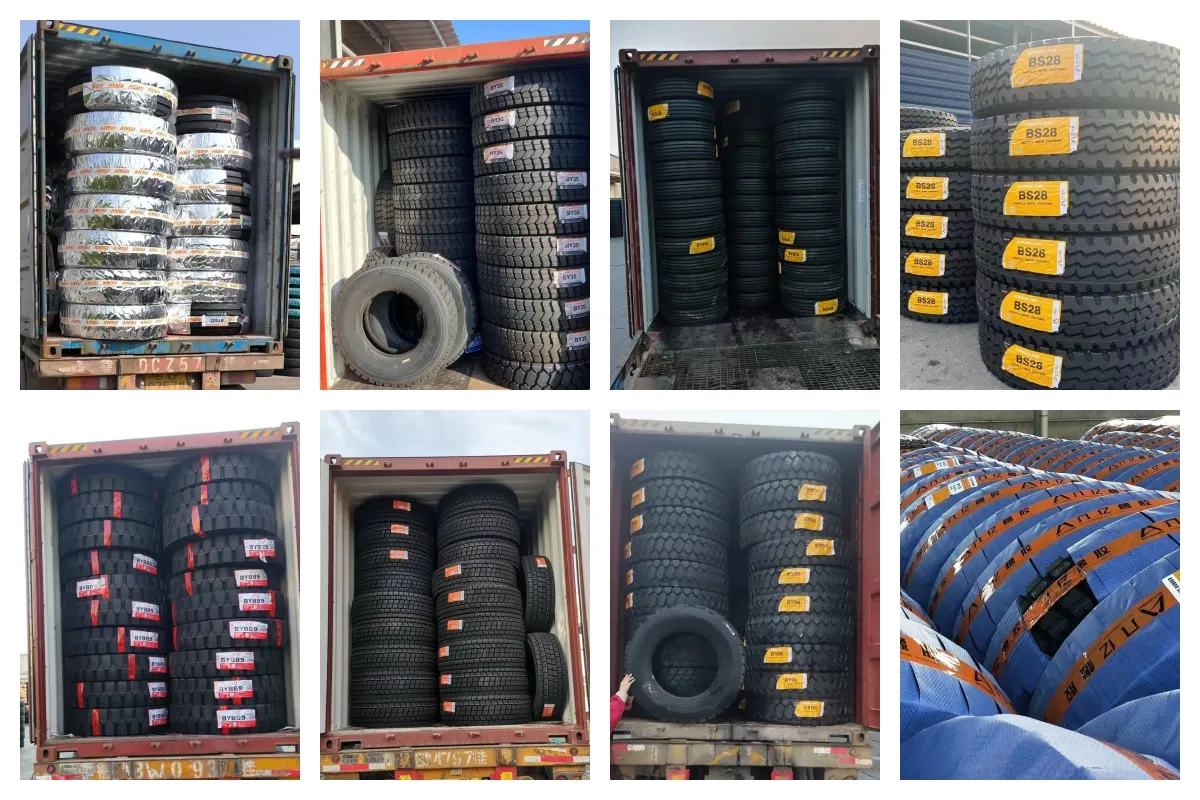

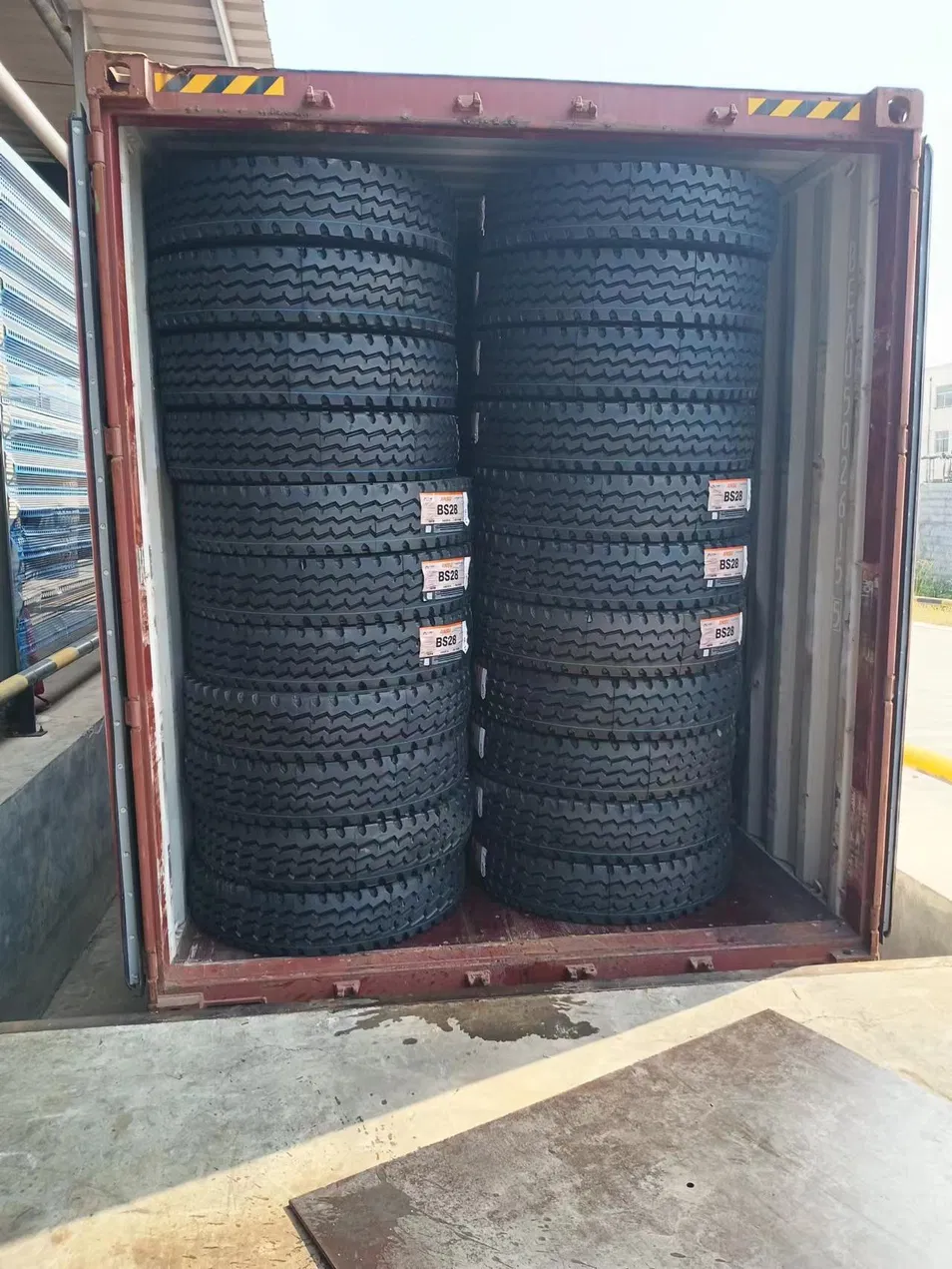

Packing and Delivery
Frequently Asked Questions
How do you guarantee tire quality?
We strictly follow a rigorous production process where every tire undergoes professional inspection. A final inspection is always conducted before shipment to ensure high standards.
What is the typical lead time for an order?
Most orders are processed and ready for shipment within 15 days after we receive the deposit.
What kind of quality assurance is provided?
We offer compensation for any manufacturing defects based on the remaining tread pattern wear.
How can I apply for a warranty claim?
Simply provide photos of the tread pattern, tire serial number, logo, the damaged area, and a measurement of the remaining tread depth.
Do you allow mixed loading for shipments?
Yes, we support mixed loading of different tire sizes to help customers optimize their inventory and shipping costs.
Are these tires suitable for off-road use?
Yes, several of our patterns (like BY916 and BY06) feature heavy-duty blocks and anti-tearing technology designed specifically for commercial and off-road applications.
